Shanling UA7 Portable USB ESS ES9069 Hi-Fi DAC/AMP High-End Sound with Dual JAN6418 Vacuum Tubes
Features
Dual JAN6418 Vacuum Tubes
ESS ES9069 Hi-Fi DAC
Advanced OP + BUF Amplifier Design
Hi-Res Audio Support: PCM 768kHz / 32bit, DSD512
Dual Output Connectors: 3.5mm Single-Ended & 4.4mm Balanced
Customizable via Companion App
Rich, Smooth Sound with Dual JAN6418 Tubes
The Shanling UA7 incorporates dual JAN6418 vacuum tubes, bringing the smooth, warm sound that tube enthusiasts love, in a compact portable device. These tubes infuse your music with a rich depth and clarity, enhancing every listening experience with their classic tube warmth. The ability to easily switch between tube and transistor outputs provides you with two distinct listening profiles, delivering versatility for any musical genre or personal preference.
ESS ES9069 Hi-Fi DAC for Precise Sound
At the heart of the UA7 lies the ESS ES9069 DAC, a high-end component designed to provide ultra-precise, accurate sound reproduction. With support for Hi-Res PCM 768kHz/32bit and native DSD512, the UA7 allows you to enjoy audio at the highest possible fidelity. Its signal-to-noise ratio (SNR) of 117dB ensures every detail of your music is captured with exceptional clarity, offering a true audiophile experience.
OP + BUF Amplifier Architecture for Powerful Output
The Shanling UA7 features an advanced OP + BUF amplifier design, utilizing OPA1662 and BUF634 to provide powerful output. Whether you’re using the 3.5mm single-ended or the 4.4mm balanced output, the UA7 delivers clear, dynamic sound with sufficient power to drive even high-impedance headphones. With up to 577mW at 32Ω balanced output, you’ll experience rich, dynamic sound across all frequency ranges.

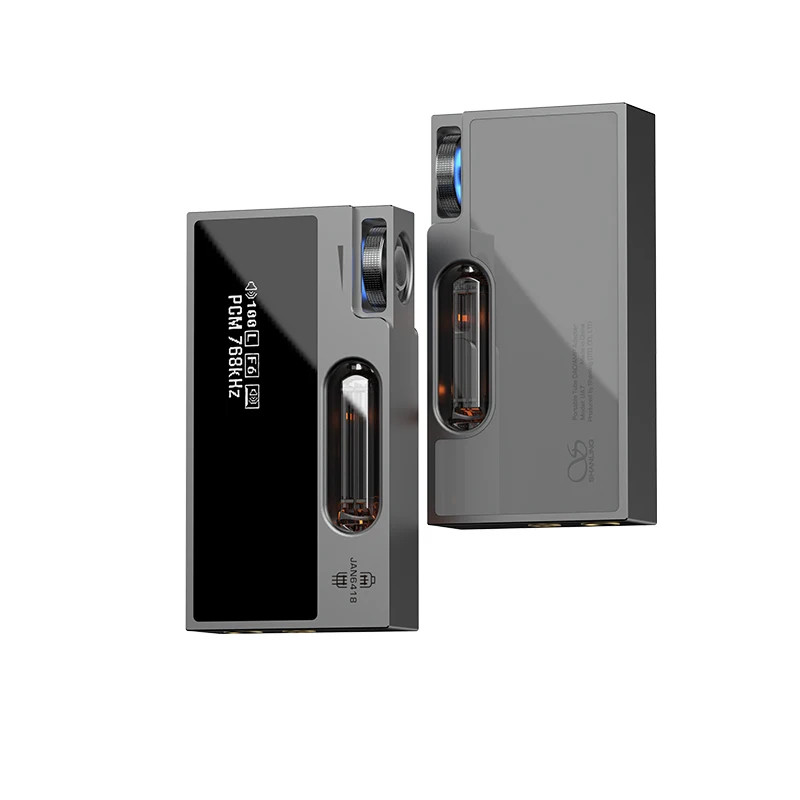

Compact, Portable and Sleek Design
True to the Shanling UA series, the UA7 combines high portability with sleek design. The slim profile makes it perfect for on-the-go use, while the inclusion of the dual JAN6418 tubes adds a distinct visual appeal. The 0.87-inch OLED display provides easy access to playback information, while the multifunctional wheel ensures smooth control of the volume and playback settings.
Hi-Res Audio Supported
The Shanling UA7 supports Hi-Res audio formats up to PCM 768kHz / 32bit and native DSD512, delivering unmatched sound quality. Whether you’re listening to your favorite music, gaming, or watching movies, the UA7 ensures every sound is rendered with detail, depth, and clarity.
Dual Output Connectors for Versatility
The Shanling UA7 offers two output options for maximum versatility: a 3.5mm single-ended output and a 4.4mm balanced output. The 3.5mm output provides great performance for general use, while the 4.4mm balanced output ensures superior sound quality and increased power, ideal for high-end headphones and audiophile-grade listening.
Companion App for Customization
The Shanling UA7 comes with a dedicated Eddict Player companion app, available for Android and Windows devices. This app offers extra control over device settings, allowing you to tailor your listening experience to your preferences. The iOS version of the app does not offer this feature due to Apple’s restrictions.
Specifications
Weight: Approx. 48.5g
Dimensions: 70*36*15mm
Display: 0.87-inch OLED screen
Supported Hi-Res: 768kHz/32bit, DSD512
DAC Chip: ESS ES9069
Vacuum Tubes: Dual JAN6418
Output Connectors: Single-ended 3.5mm + Balanced 4.4mm
3.5mm Single-ended Output(Transistor):
Output Power: 2.5V@32Ω (195mW@32Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0006%@32Ω
Dynamic Range: 119dB@32Ω
Channel Separation: 73dB@32Ω (A-Weight High Gain)
Signal-to-Noise Ratio: 119dB@32Ω (A-Weight High Gain)
Noise: 110dB@32Ω (A-Weight High Gain)
Output Impedance: 0.5Ω
4.4mm Balanced Output(Transistor):
Output Power: 4.3V@32Ω (577mW@32Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.00095%@32Ω
Dynamic Range: 120dB@32Ω
Channel Separation: 109dB@32Ω (A-Weight High Gain)
Signal-to-Noise Ratio: 119dB@32Ω (A-Weighted High Gain)
Noise: 105dB@32Ω (A-Weighted High Gain)
Output Impedance: 1Ω
